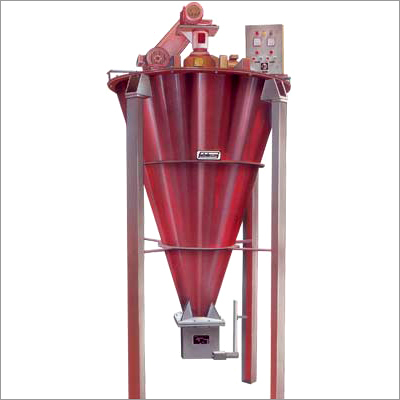

Conical Screw Blender from fabdecon basically consists of vertical conical vessel housing a screw parallel to the wall and performing a planetary motion. The planetary motion of the screw is achieved by a highly engineered drive mechanism. The combination of the conical vessel and the planetary screw imparts to the product being processed, a three dimensional motion by the mixing screw conveys the product form bottom of the vessel to the product surface; the orbital arm orbits the mixing of particles; and the speed of particles in the downward direction due to gravity increases as the vessel diameter decreases. The result of these simultaneous actions, is a fast and intensive mixing with low power consumption to give high standards of mixing accuracy.
The application of this cone screw mixer includes:
- Mixing and homogenization of powder, pastes and slurries
- Vacuum drying of pastes and slurries
- Addition or injection of liquids to or in dry solids
- Granulation or agglomeration of powders by the addition of a binder
- Reaction under vacuum or pressure conditions
- Crystallization; inertisation; serration of de-aeration
- Densifying
- Storage and discharge of products with difficult flow properties
- Homogenization of colours and particle sizes
- Cooling and heating
|
