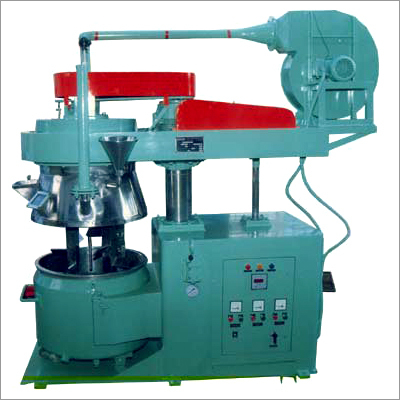

Concentric Shaft Mixer

Concentric Shaft Mixer
Concentric Shaft Mixer
Product Code : 08
Brand Name : FABDECON ENGINEERS
Product Description

Backed with a team of experienced professionals, we are engaged in offering our clients an extensive collection of Planetary Mixer. Available in various specifications as per the precise requirements of clients, this mixer is precisely manufactured in compliance with predefined industry standards using first-class quality structural steel raw material and leading-edge technology. Also, this Planetary Mixer is ideal for paste and kneading applications in the different industries like chemical, cosmetic, food, battery, ink, coatings, adhesives, sealants, etc.

Features:

  • High strength
  • Heat resistance
  • Corrosion resistance
  • Durability

Specifications:

  • Machine Upright: Fabricated from structural steel with broad ase to give stavle and smooth operation. The base plate is extended to incorporate castor tracks to guide the container in position.This also houses the complete mechanism for elavating the upper assembly basically consisting of the hydrualic cylinder, power pack and the electrical controls.

  • Upper Assembly: Again fabricated from structural steel and mounted on the machine upright, actuated by hydrualic cylinder and stebilised by a guide rod,this houses all the drive elements and if necessary optionally the dust free container cover.

  • Change Can: Mounted on castors, this can be moved about easily.Normally there are two fixed castors and one swivel type for easy manoeuvrability.The container also has arrangement to get positioned and locked to the machine upright.

  • Agitator Assembly: The vertical shafts of the planetary agitator assembly run in antifriction bearings housed in a fabricated housing accomodating the epicyclic gear train.Standard construction has shafts having oppositely pitched blades,which impart simultanously radial and thrust to the contents being processed.

  • Elavating Mechanism: The upper assembly complete with the mixing elements has rise and fall adjustment, through manual or motorised operation of mechanical or hydraulic operating gear depending upon the size of the equipment.This facilitates aces to and thus cleaning of the mixing elements and the interior of the can, when changing formulation.

  • Drive: This basically consisting of motor,worm reducer planetary gear train and connecting elements, are mounted on the upper assembly.The necessary switchgear for the drive is however accomodated in the achine uprght.In case of none flame proof application, the interconnecting wiring is completed at shop before despatch.

Capacity Of Planetary Mixer :

FABDECON DOUBLE PLANETARY IXER can be made available in capacities varying fom 10 litres to 1000 litres.

Material of Construction Used In Planetary Mixer :

The standard material of construction for the contact parts is stainless steel to AISI-304.However,equipment can be offered with other material as may be dictated by process requirements.
